Lastenheter för vägtransport
* Vi gör uppmärksam på att antal pallplatser i denna översikten är baserad på EUR pall 120x80 cm. Maximal lastvikt i Norden är 30 ton och i övriga Europa 25 ton.
These small vans have a loading capacity of around 3m³, and are commonly used for express and small deliveries. Example: VW Caddy
Capacity (pallets) | 2 pallets |
Capacity (weight) | approx. 800 kg |
Capacity (load meter) | Variable |
Inner cabinet width | ca 1,5 metres |
Inner cabinet length | Variable |
Inner cabinet height | ca 1,2 metres |
Crane | N/A |
Roof rack | N/A |
Length | Variable |
Tail lift | N/A |
Exterior width | Variable |
Exterior height | Variable |
These medium sized vans have a loading capacity of around 5 - 11m³, depending on internal height. Example: MB Vito
Capacity (pallets) | 3 pallets |
Capacity (weight) | approx. approx.1400 kg |
Capacity (load meter) | Variable |
Inner cabinet width | approx.1,8 metres |
Inner cabinet length | Variable |
Inner cabinet height | 1,3 - 1,8 metres |
Crane | N/A |
Roof rack | N/A |
Length | Variable |
Tail lift | N/A |
Exterior width | Variable |
Exterior height | Variable |
These large vans have a loading capacity of around 14m³, depending on internal height. Example: MB Sprinter
Capacity (pallets) | 4 pallets |
Capacity (weight) | approx. 1100 - 2000 kg |
Capacity (load meter) | Variable |
Inner cabinet width | approx.1,8 metres |
Inner cabinet length | Variable |
Inner cabinet height | Variable |
Crane | N/A |
Roof rack | N/A |
Length | Variable |
Tail lift | N/A |
Exterior width | Variable |
Exterior height | Variable |
Small trucks have a closed cargo unit with capacity for 8 pallets. Handy for smaller deliveries, but an also load heavier goods due to tail lift.
Capacity (pallets) | 8 pallets |
Capacity (weight) | approx. 1 ton |
Capacity (load meter) | 4,5 metres |
Inner cabinet width | 2,2 metres |
Inner cabinet length | 6 metres |
Inner cabinet height | 2,0 metres |
Crane | N/A |
Roof rack | N/A |
Length | 6 metres |
Tail lift | 600 kg |
Exterior width | 2,4 metres |
Exterior height | 3,2 meter |
Medium sized truck have a closed cargo unit with capacity for 15 pallets and up to 5 tonnes.
Capacity (pallets) | 12 - 15 pallets pallets |
Capacity (weight) | approx. 2- 5 tonnes |
Capacity (load meter) | 6 loading metres |
Inner cabinet width | 2,4 metres |
Inner cabinet length | 7,5 metres |
Inner cabinet height | 2,35 metres |
Crane | N/A |
Roof rack | N/A |
Length | 7,5 metres |
Tail lift | 1000 kg |
Exterior width | 2,5 metres |
Exterior height | 3,5 metres |
Large trucks have a closed cargo unit with capacity of up to 20 pallets and 10 tonnes.
Capacity (pallets) | 18 - 20 pallets pallets |
Capacity (weight) | approx. 8- 10 tonnes |
Capacity (load meter) | 7,5 loading metres |
Inner cabinet width | 2,4 metres |
Inner cabinet length | 10 meter |
Inner cabinet height | 2,5 metres |
Crane | N/A |
Roof rack | N/A |
Length | 10 meter |
Tail lift | 1500 kg |
Exterior width | 2,5 metres |
Exterior height | 3,9 - 4,2 metres |
Three-axle trailer with uninsulated enclosed cargo space. There are folding doors on one side, so one can load long cargo from the side. Internal fastening hooks in the floor and walls to secure goods. And lockable doors make it difficult for intruders to enter the freight unit.
Capacity (pallets) | 33 pallets pallets |
Capacity (weight) | approx. 30 tonnes in Nordic countries. 24,5 tonnes in the EU |
Capacity (load meter) | 13,6 loading metres |
Inner cabinet width | 2,5 metres |
Inner cabinet length | 15,5 metres |
Inner cabinet height | 2,5 metres |
Crane | N/A |
Roof rack | N/A |
Length | 15,5 metres |
Tail lift | N/A |
Exterior width | 2,5 metres |
Exterior height | 4 metres |
Three-axle trailer with movable canopy and roof and rear doors. Loading from the rear, side and above. Hooks in floor for securing cargo
Capacity (pallets) | 34 pallets pallets |
Capacity (weight) | approx. 30 tonnes in Nordic countries. 24,5 tonnes in the EU |
Capacity (load meter) | 13,6 loading metres |
Inner cabinet width | 2,48 metres |
Inner cabinet length | |
Inner cabinet height | 2,7 metres |
Crane | |
Roof rack | |
Length | |
Tail lift | N/A |
Exterior width | |
Exterior height |

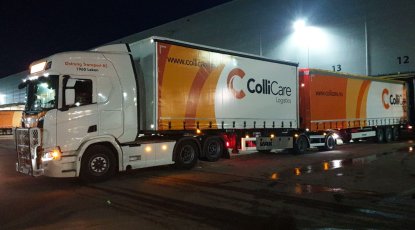

Truck with hanger
Capacity (pallets) | 38 pallets pallets |
Capacity (weight) | approx. 25 tonnes |
Capacity (load meter) | 15,2 loading meters |
Inner cabinet width | 2,47 meters |
Inner cabinet length | 15,34 meters |
Inner cabinet height | 2,9 meters |
Crane | |
Roof rack | |
Length | 15,34 meters |
Tail lift | |
Exterior width | |
Exterior height |
Three-axle trailer for loading of loose material, for example wood chips and industrial waste. Enclosed cargo space in aluminium profiles, with fully welded interior. Folding doors on one side for loading of long cargo. Floor in 10mm grooved aluminium.
Capacity (pallets) | 33 pallets pallets |
Capacity (weight) | approx. 30 tonnes in Nordic countries. EU = N/A |
Capacity (load meter) | 13,6 loading metres |
Inner cabinet width | 2,4 metres |
Inner cabinet length | |
Inner cabinet height | 3 metres |
Crane | |
Roof rack | |
Length | |
Tail lift | |
Exterior width | |
Exterior height |
20 Feet container = 1 TEU.
Capacity (pallets) | 18 pallets pallets |
Capacity (weight) | approx. 12,5 tonnes |
Capacity (load meter) | 7,6 loading metres |
Inner cabinet width | 2,4 metres |
Inner cabinet length | 7,8 meter |
Inner cabinet height | 2,6 metres |
Crane | |
Roof rack | |
Length | 7,8 meter |
Tail lift | |
Exterior width | 2,5 metres |
Exterior height | 4 metres |

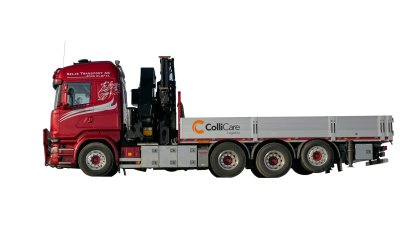

We can offer cranes of various sizes and capacity.
Capacity (pallets) | 15 - 18 pallets pallets |
Capacity (weight) | approx. 6 -10 tonnes |
Capacity (load meter) | 6 - 7,5 loading metres |
Inner cabinet width | 2,4 metres |
Inner cabinet length | 10 - 11,4 metres |
Inner cabinet height | |
Crane | 16 - 52 tonnes/metres |
Roof rack | |
Length | 10 - 11,4 metres |
Tail lift | 1.500 kg |
Exterior width | 2,5 metres |
Exterior height | 3,6 - 3,8 metres |
Container 25/782 (305)SDOPS, for both train and truck, steel with side opening.
Capacity (pallets) | 19 pallets pallets |
Capacity (weight) | approx. 14 - 16 tonnes |
Capacity (load meter) | 7,6 loading metres |
Inner cabinet width | 2,475 metres |
Inner cabinet length | |
Inner cabinet height | 2,8 metres |
Crane | |
Roof rack | |
Length | |
Tail lift | |
Exterior width | 2,55 metres |
Exterior height | 3,05 metres |
